Website Shape Dividers

How to create shape dividers for sections on your website pages

shape-divider-icon

SHAPE DIVIDERS

A shape divider is an SVG file that adds a non-linear division between sections on your website page to enhance the design layout.

shape-divider-example

Page Speed Impact

LOW

Adding shape dividers does not have an impact on how quickly the page loads, they are created with very small SVG files that are optimized and are loaded asynchronously.

Pages without shape dividers will not load any additional JS files.

MEDIUM

Depending on layering and position on page, may have an impact on mobile devices due to the additional files that have to be loaded.

TIPS

Because they are SVG files, your shape dividers will be fully responsive on all screen sizes and resolutions, including retina displays.

If multiple shape dividers are on the same page or complex layering of shapes for a section, we recommend that you disable on mobile (can disable on mobile for basic shapes as well to reduce impact overall).

FAQ

Which modules have shape dividers?

Shape Dividers are included in the style settings for all POWER Sec modules with the exception of the POWER Sec Content Split module and POWER Sec Breadcrumbs.

You can also configure Shape Dividers for each of the layouts available in the Global Footer module.

Can I use more than one shape divider for a section?

Yes, you can configure multiple shape dividers for the top and/or bottom of the section modules.

Step-by-Step

Shape Dividers are designed to enhance your website layout by adding textural elements to the horizontal sections on the page, helping to blur the edges of sections of content to create a smooth transition as the user scrolls down the page.

Add Shape Dividers to Your HubSpot Website Theme

Marketing  → Website → Website Pages → [POWER SEC Module] → Style → Shape Divider

shape-divider-settings

Style → Shape Divider → Shape Item

This is where you will add the shapes to build your Shape Divider, you can add as many as you would like.

The first item in this list will be in the back (bottom layer). The last item in this list will be visible in the front (top layer).

Style → Shape Divider → Offset Top and Offset Bottom

The shape grows into the content area for the section. The offset adds space between the shape and the content area so you can control whether the shape overlaps the content (above or below can also be determined).

Style → Shape Divider → Above Content

If true, this hides the content if the shape overlaps it.

Style → Shape Divider → Disable on Mobile

Option to disable shape dividers on mobile to reduce the load time for the page (shape and JS files don't have to be loaded).

Style → Shape Divider → Shape Item → Add one

Click this link to add your first shape.

Style → Shape Divider → Shape Item → Diagonal

The default shape is Diagonal and will be the name of the Item until you change the shape.

add-new-shape-divider

Style → Shape Divider → Shape Item → Diagonal → Position

Option for the shape divider to be at the Top of the Section or the Bottom of the Section.

Style → Shape Divider → Shape Item → Diagonal → Type

Select the Shape you would like to use:

  • Arrow Book
  • Arrow Split
  • Arrow Split Alt.
  • Arrow Straight
  • Corner Cut
  • Corner Rounded
  • Curve
  • Round
  • Diagonal
  • Diagonal Rounded
  • Triangle
  • Triangle Asym.
  • Triangle Asym. Alt
  • Triangle Mini
  • Paper Cut 1
  • Paper Cut 2
  • Paper Cut 3
  • Wave 1
  • Wave 2
  • Wave 3
  • Wave 4
  • Wave Mini

shape-dividers-available

Style → Shape Divider → Shape Item → Diagonal → Flip Horizontally

Option to flip the shape on the y-axis to flip the left side of the shape to the right side of the shape.

Style → Shape Divider → Shape Item → Diagonal → Flip Vertically

Option to flip the shape on the x-axis to flip the top of the shape to the bottom of the shape.

Style → Shape Divider → Shape Item → Diagonal → Invert Shape

Fill the other area of the shape with color, creating the inverse shape from what is shown.

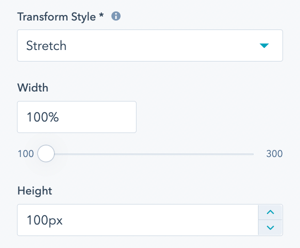

Style → Shape Divider → Shape Item → Diagonal → Transform Style

shape-divider-transform-style

Choice of Stretch or Scale Ratio.

Scale Ratio will respect the width to height ratio of the original shape; the height will change depending on the device's width. Stretch will stretch the shape to fit your width and height settings; the height will stay the same across devices.

Style → Shape Divider → Shape Item → Diagonal → Width

Adjust from 100% to 300% of the original shape's width.

Style → Shape Divider → Shape Item → Diagonal → Height

Available for Stretch Transform Style only; set the height in pixels.

Style → Shape Divider → Shape Item → Diagonal → Color Type

Choice of Color or Gradient.

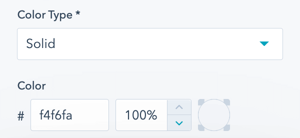

Style → Shape Divider → Shape Item → Diagonal → Color Type → Color

shape-divider-solid-color-type

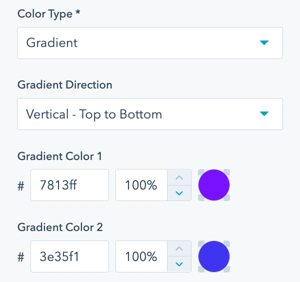

Style → Shape Divider → Shape Item → Diagonal → Color Type → Gradient

shape-divider-gradient-color-type

Configurations

Layered Wave configuration

shape-divider-wave-configuration

Shape Divider > Shape Item

  1. Wave 1
  2. Wave 1

Shape Divider > Offset Top / Offset Bottom

0px

1. Wave 1> Position

Bottom

1. Wave 1> Type

Wave 1

1. Wave 1> Flip Horizontally

Active

1. Wave 1> Transform Style

Stretch

1. Wave 1> Width

100%

1. Wave 1> Height

140px

1. Wave 1> Color Type

Gradient

1. Wave 1> Gradient Direction

Select an option (default)

1. Wave 1> Gradient Color 1

#3e35f1 at 70%

1. Wave 1> Gradient Color 2

#3e35f1 at 0%

2. Wave 1> Position

Bottom

2. Wave 1> Type

Wave 1

2. Wave 1> Flip Horizontally

Active

2. Wave 1> Transform Style

Stretch

2. Wave 1> Width

100%

2. Wave 1> Height

120px

2. Wave 1> Color Type

Solid

2. Wave 1> Color

#FFFFFF at 100%

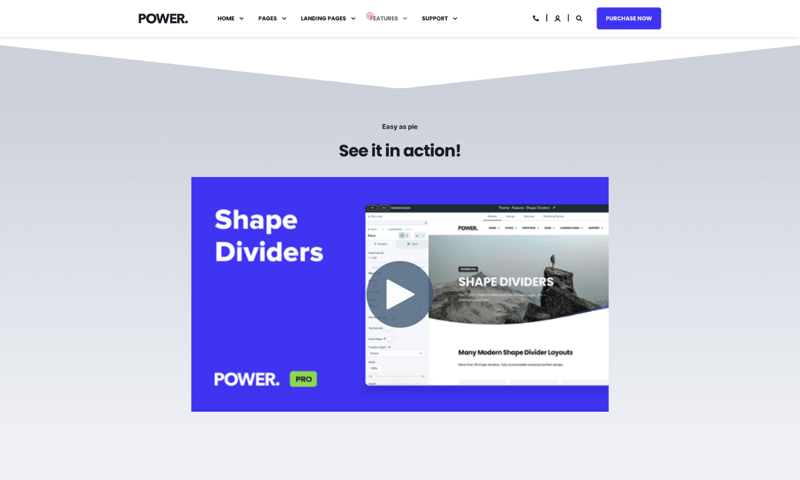

Triangle configuration

shape-divider-wide-triangle-configuration

Shape Divider > Shape Item

  1. Triangle

Shape Divider > Offset Top

0px

Shape Divider > Offset Bottom

40px

1. Triangle> Position

Bottom

1. Triangle> Type

Triangle

1. Triangle> Transform Style

Stretch

1. Triangle> Width

100%

1. Triangle> Height

100px

1. Triangle> Color Type

Solid

1. Triangle> Color

#ccd1d9 at 100%

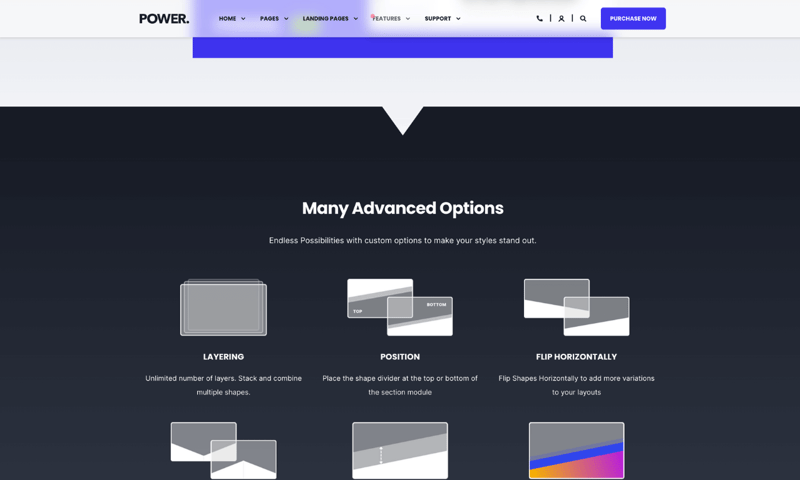

Arrow Straight configuration

shape-divider-arrow-straight-configuration

Shape Divider > Shape Item

  1. Arrow Straight

Shape Divider > Offset Top

0px

Shape Divider > Offset Bottom

-50px

1. Arrow Straight> Position

Bottom

1. Arrow Straight> Type

Arrow Straight

1. Arrow Straight> Transform Style

Scale Ratio

1. Arrow Straight> Width

100%

1. Arrow Straight> Color Type

Solid

1. Arrow Straight> Color

#171b25 at 100%

Layered Wave configuration

shape-divider-example

Shape Divider > Shape Item

  1. Paper Cut 3
  2. Paper Cut

Shape Divider > Offset Top

80px

Shape Divider > Offset Bottom

80px

1. Paper Cut 3> Position

Top

1. Paper Cut 3> Type

Paper Cut 3

1. Paper Cut 3> Transform Style

Scale Ratio

1. Paper Cut 3> Width

100%

1. Paper Cut 3> Color Type

Solid

1. Paper Cut 3> Color

#323947 at 100%

2. Paper Cut> Position

Bottom

2. Paper Cut> Type

Paper Cut

2. Paper Cut> Transform Style

Scale Ratio

2. Paper Cut> Width

100%

2. Paper Cut> Color Type

Solid

2. Paper Cut> Color

#171b25 at 100%

Examples

Next Steps

Both Shape Dividers and Animation on Scroll are great ways to create dynamic, interactive page layouts to keep your site visitors engaged with your content.
